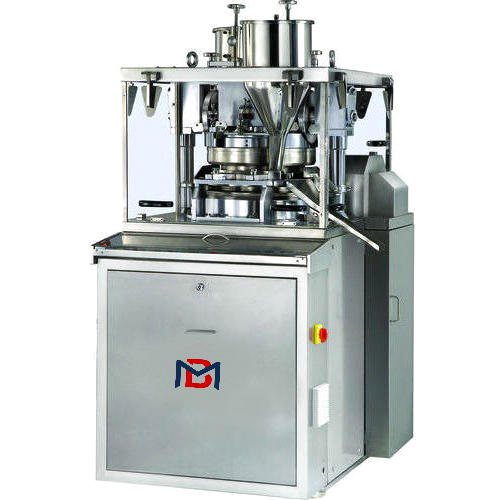

High Speed Machines Press IV
Product Details:
- Type High Speed Machines Press IV
- Material Stainless Steel
- Computerized No
- Control Mode Automatic
- Power 10 HP/7.5 kW, 3 Phase, 1440 RPM, 415V, 50 Hz. Volt (v)
- Color Silver
- Warranty 1 Year
- Click to View more
X
High Speed Machines Press IV Price And Quantity
- 1 Piece
High Speed Machines Press IV Product Specifications
- 10 HP/7.5 kW, 3 Phase, 1440 RPM, 415V, 50 Hz. Volt (v)
- Stainless Steel
- Silver
- Automatic
- No
- 1 Year
- High Speed Machines Press IV
High Speed Machines Press IV Trade Information
- 20 Piece Per Month
- 10 Days
Product Description
Introducing the High Speed Machines Press IV, a powerful and efficient machine designed to meet the demands of industrial-scale production. This press boasts a robust 10 HP/7.5 kW motor with 3 phase, 1440 RPM, 415V, 50 Hz. Volt (v) power output, allowing for quick and smooth operation. Made from high-quality stainless steel, this machine guarantees durability and longevity. Its automatic control mode ensures precision and consistency in every press, making it an ideal choice for high-volume production. The sleek silver color adds a modern touch to any manufacturing facility. Whether youre in the food, chemical or pharmaceutical industry, the High Speed Machines Press IV is a reliable and efficient solution for your pressing needs.
Technical Specification
| Machine Type | Press-IV 45 | Press-IV 55 | Press-IV 69 | Press-IV 75 |
| Number of Station | 45 | 55 | 69 | 75 |
| Type of Tooling | D | B | BB | BB |
| Output -Tablet/Hr.* | 65,000 to 324,000 | 79,000 to 396,000 | 99,000 to 497,000 | 108,000 to 540,000 |
| Max. Operating Pressure | 10 Tons | 6.5 Tons | 6.5 Tons | 6.5 Tons |
| Max. Compaction force-Pre | 1 Tons | |||
| Max. Tablet Dia. | 25 mm | 16 mm | 11 mm | 11 mm |
| Max. Depth of fill | 20.5 mm | 17.5 mm | 17.5 mm | 17.5 mm/td> |
| Upper Punch Penetration | 3 to 6 mm | 3 to 6 mm | 3 to 6 mm | 3 to 6 mm |
| Main Electric Motor | 10 HP/7.5 kW, 3 Phase, 1440 RPM, 415V, 50 Hz. | |||
| Feeder Motors (2 Nos.) | 0.25 hp/0.18 kW / 1440 RPM / 415 V | |||
| Total Power Consumption | 11.7 HP / 8.75 kW | |||
| Force Feeder Motor-Option | 0.25 hp/0.18 kW x 2 nos. | |||
| Force Feeder Motor-Option | Overall Dimensions(mm) | |||
| Net Weight | 3800 Kg | |||
FAQs of High Speed Machines Press IV:
Q: What is the warranty for the High Speed Machines Press IV?
A: The High Speed Machines Press IV comes with a 1-year warranty.Q: Is the High Speed Machines Press IV computerized?
A: No, the High Speed Machines Press IV is not computerized.Q: What is the business type of the manufacturer of the High Speed Machines Press IV?
A: The High Speed Machines Press IV is manufactured by an exporter, manufacturer, and supplier.Q: What is the power output of the High Speed Machines Press IV?
A: The High Speed Machines Press IV has a 10 HP/7.5 kW motor with 3 phase, 1440 RPM, 415V, 50 Hz. Volt (v) power output.Q: What is the material used to make the High Speed Machines Press IV?
A: The High Speed Machines Press IV is made from high-quality stainless steel.Tell us about your requirement
